d&b D40 Amplifier for Sale | 4-Channel Professional DSP Amplifier

The d&b D40 amplifier for sale brings four high-performance amplifier channels, advanced DSP, LoadMatch and modern network control together in a compact 2U platform. Developed for professional mobile applications, the D40 is designed to drive compatible d&b loudspeaker systems while giving engineers centralized control over amplification, processing, delay and system monitoring. With a maximum output voltage of 180 V peak, current capability of 35 A peak and sophisticated loudspeaker-specific processing, the D40 is a strong choice for touring companies, production houses and professional AV businesses.

More importantly, the D40 is not simply a high-wattage power amplifier. It operates as part of the wider d&b system approach, allowing supported loudspeakers to run with dedicated configurations and protection while engineers manage the system locally or through d&b’s networked control environment.

Four Powerful Channels for Modern d&b Systems

The D40 provides four independent Class-D amplifier channels inside a 2U chassis.

This architecture offers high channel density for touring racks. Instead of filling valuable rack space with multiple two-channel amplifiers, professional users can manage four independently processed outputs from one device.

Key output specifications include:

• 4 independent amplifier channels
• 180 V peak output voltage
• 35 A peak output current
• High-output Class-D architecture
• Up to 9.6 kW stated total output under applicable conditions

Actual available power depends on load, mains supply, loudspeaker configuration and signal characteristics.

d&b D40 Technical Overview

96 kHz DSP Built Into the Amplifier

The processing architecture is one of the main reasons professionals choose the D40.

Its integrated 96 kHz DSP handles d&b loudspeaker configurations alongside system-tuning functions. Therefore, technicians do not need to treat amplification and loudspeaker management as entirely separate stages.

When the correct supported loudspeaker setup is selected, the D40 applies the appropriate manufacturer processing.

This integration also helps maintain a consistent workflow across larger d&b systems.

16-Band EQ on Every Channel

Each channel provides extensive equalization capabilities.

The available 16-band EQ supports multiple filter types, including:

• Parametric filters
• Shelving filters
• Notch filters
• Asymmetric filters

Consequently, system engineers have considerable flexibility when adapting a PA to different acoustic environments.

For example, a touring system can move from an indoor performance venue to an outdoor event while retaining the same amplifier infrastructure. Engineers can then adjust the system according to the new environment.

10 Seconds of Delay for Complex Systems

The D40 provides up to 10 seconds of delay per channel.

For ordinary loudspeaker alignment, only a fraction of this range may be necessary. However, having such extensive delay available creates flexibility for larger distributed systems.

Potential applications include delayed audience zones, remote loudspeaker positions and complex venue installations.

Furthermore, having delay directly inside the amplifier can reduce dependence on additional external processors.

LoadMatch Cable Compensation

Long loudspeaker cables introduce electrical resistance that can influence system performance.

The D40 incorporates d&b LoadMatch, which provides cable compensation for supported loudspeaker configurations.

This is especially useful when amplifier racks must be positioned far away from the loudspeakers.

In large venues or outdoor productions, for example, speaker cable runs can become substantial. LoadMatch gives system technicians a manufacturer-integrated method for addressing these effects.

d&b D40 Amplifier for Sale with NL4 and NL8 Connectivity

For professional system builders, output connectivity is another important advantage of this d&b D40 amplifier for sale.

The amplifier supports individual NL4 loudspeaker outputs as well as an NL8 output configuration that can carry multiple amplifier channels through a single suitable connection.

This provides flexibility when building touring racks.

A rental company might prefer individual NL4 outputs for some systems while using multicore NL8 infrastructure for larger deployments.

Analog and AES3 Digital Audio

Four analog XLR inputs provide conventional professional audio connectivity.

In addition, AES3 digital inputs allow the D40 to accept digital audio in suitable system architectures.

This means the amplifier can integrate into both established analog workflows and modern digital signal chains.

Moreover, supported input-routing options can help professional users design redundant or flexible system configurations.

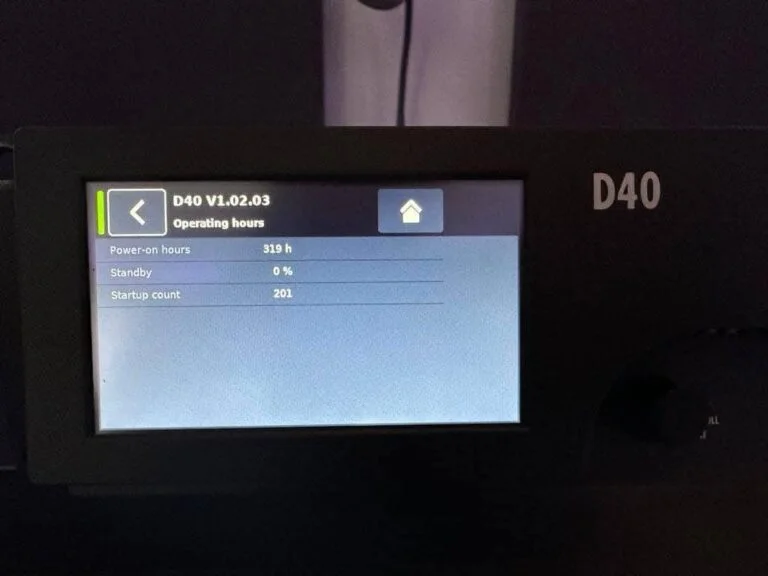

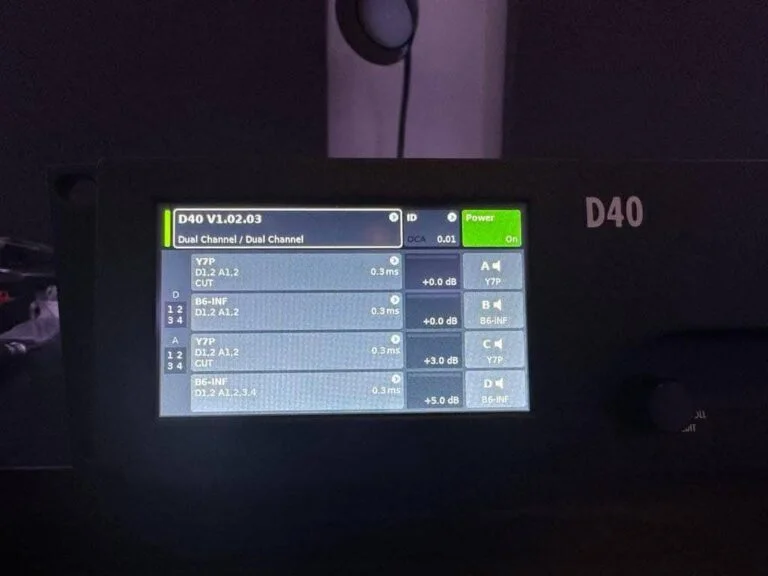

4.3-Inch Color Touchscreen

A 4.3-inch color touchscreen gives technicians direct access to the amplifier.

The interface provides system information, configuration controls and monitoring functions without requiring a separate computer for every adjustment.

A rotary encoder complements touchscreen operation.

This combination can be particularly convenient when technicians are preparing amplifier racks in a warehouse or making quick adjustments during system deployment.

Network Control with d&b R1

Large professional systems often contain many amplifier channels.

Walking between racks to adjust each amplifier individually would be inefficient. Therefore, the D40 supports networked control through compatible d&b environments, including R1 Remote control software.

Dual Ethernet connections support network integration.

From an appropriate control position, technicians can manage and monitor multiple compatible devices as part of the overall system.

Designed with Touring Efficiency in Mind

Touring systems need more than output power.

Equipment must also fit efficiently into racks, withstand regular transport and integrate quickly during setup.

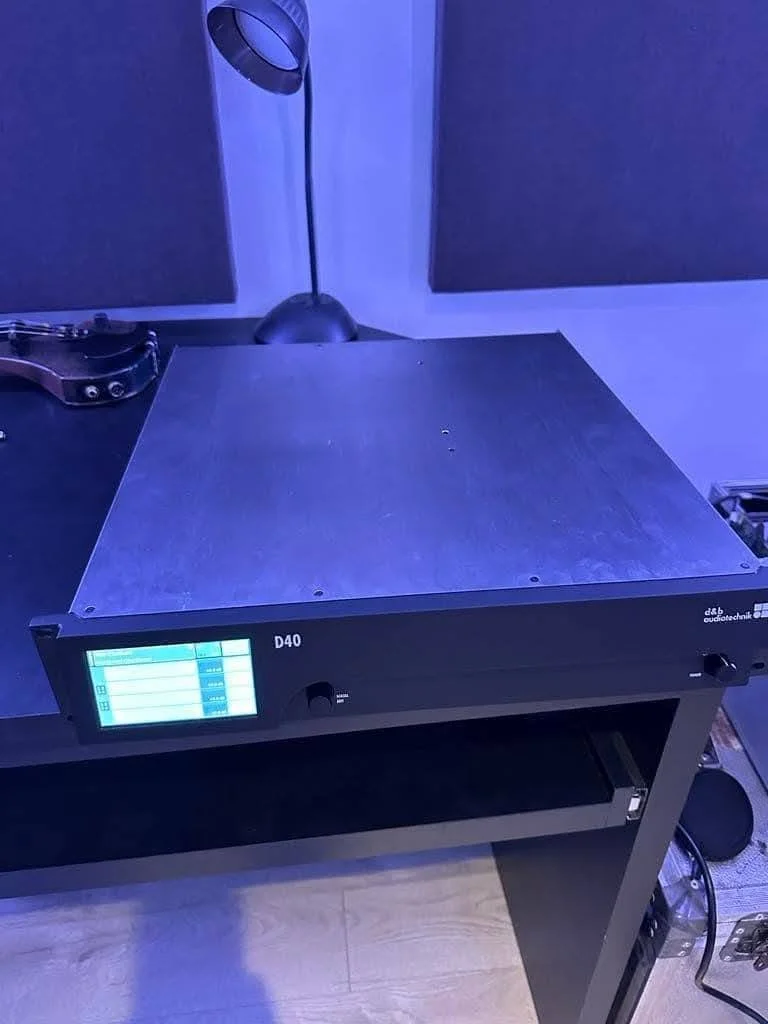

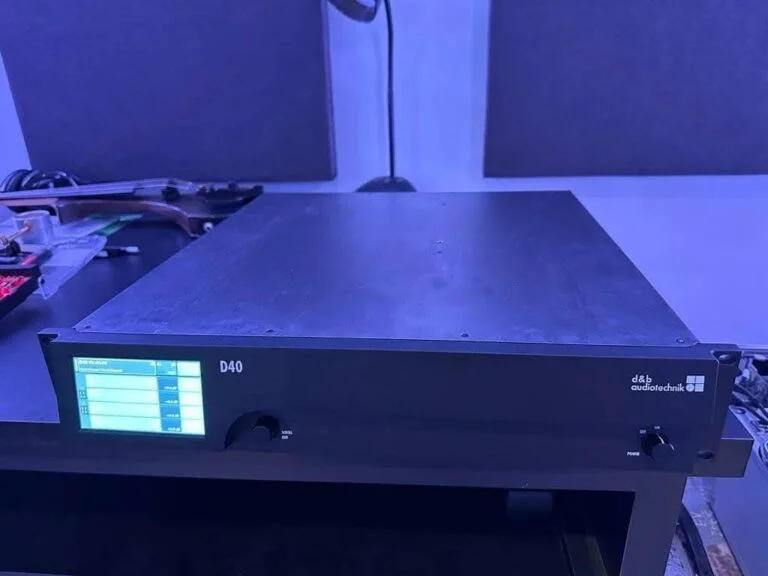

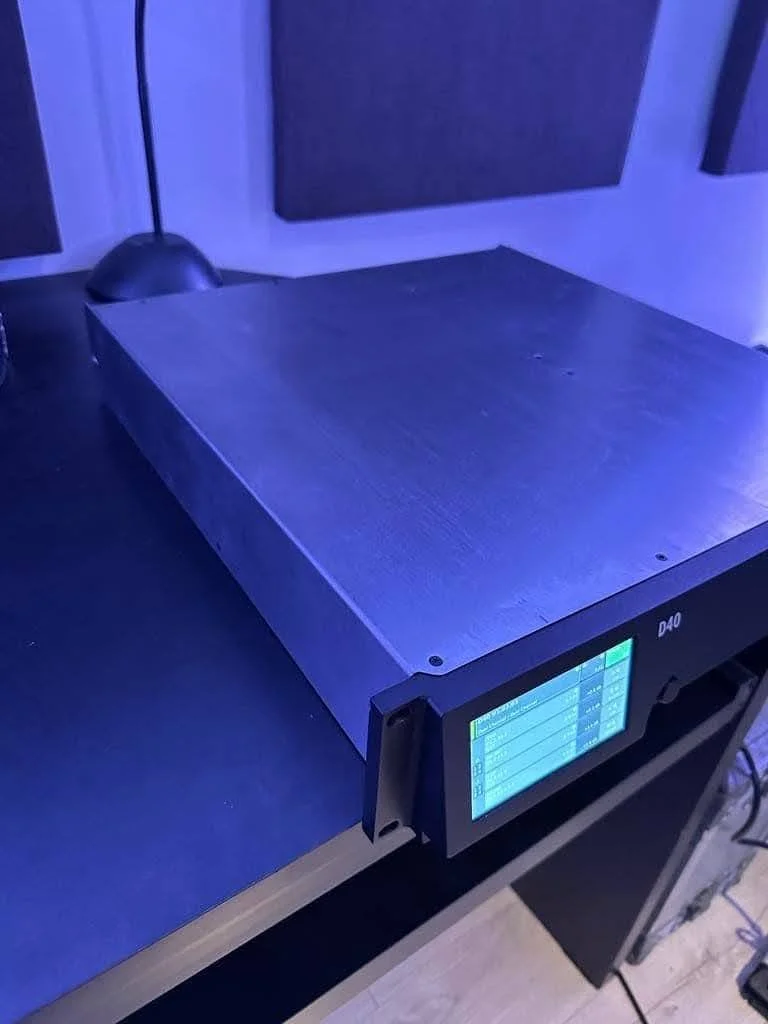

The D40 occupies only 2U, measures approximately 465 mm deep and weighs around 13.8 kg.

As a result, multiple D40 amplifiers can provide substantial channel capacity without creating excessively large amplifier racks.

For production companies moving systems between European venues, this combination of power density and manageable physical dimensions can be particularly valuable.

Energy Management for Professional Operations

Modern professional systems increasingly consider power consumption alongside acoustic performance.

The D40 includes energy-management features such as standby functionality and automatic wake-up capabilities.

This can be particularly useful in environments where systems remain installed and powered for extended periods but do not need to operate continuously at full readiness.

Additionally, the switch-mode power supply incorporates power-factor correction for professional mains operation.

Built-In Protection

Professional amplifiers must protect both themselves and the connected loudspeaker system under abnormal operating conditions.

The D40 incorporates protection mechanisms addressing issues such as:

• Excessive current
• High operating temperatures
• DC conditions
• Inappropriate output conditions
• High-frequency voltage

Variable-speed cooling helps regulate internal temperatures according to operating demand.

These systems work in the background while technicians concentrate on the overall production.

D40 for Y-Series and Other Compatible Systems

One reason buyers search for a d&b D40 amplifier for sale is its compatibility with a broad selection of supported d&b loudspeakers.

Depending on the exact configuration and current manufacturer support, D40 can form part of systems built around professional d&b families such as Y-Series and other compatible platforms.

However, amplifier compatibility should always be checked for the exact loudspeaker model.

The fact that two products carry the d&b name does not automatically mean every combination is supported.

D40 Versus D20

The D20 and D40 both provide four amplifier channels and integrated d&b processing, but they belong to different stages of d&b amplifier development.

The D40 introduces a newer processing and connectivity platform while maintaining the four-channel professional architecture.

Therefore, companies considering an upgrade from D20 may value the D40’s newer system capabilities and network environment.

Nevertheless, the correct choice depends on the loudspeaker inventory, required output and system design rather than model number alone.

D40 Versus D80

D40 and D80 are both high-performance four-channel d&b amplifiers, but they should not be treated as interchangeable solely based on headline output specifications.

System compatibility and the requirements of the connected loudspeakers should guide the decision.

For buyers building or expanding a professional d&b inventory, checking the approved amplifier configuration for each loudspeaker model remains the best approach.

Suitable Applications for the D40

The D40 can serve many professional sound-reinforcement environments when used with supported d&b equipment.

Common applications include:

• Concert touring
• Professional PA rental
• Festivals
• Corporate AV
• Theatre productions
• Live performance venues
• Professional event production
• Mobile sound systems
• Multi-zone audio
• Existing d&b system expansion

Its combination of four channels, processing and networking makes it particularly useful where several loudspeaker circuits need independent management.

Why Consider a d&b D40 Amplifier for Sale?

Choosing a d&b D40 amplifier for sale can make sense for companies that want to expand a modern compatible d&b inventory without introducing an unrelated amplifier platform.

Existing d&b users may already have compatible loudspeakers, cables and network-control infrastructure.

Additional D40 units can therefore serve as expansion amplifiers, backup inventory or the foundation of new touring racks.

Furthermore, standardizing amplifier platforms can make system preparation and staff training more consistent across a professional rental operation.

Buying a d&b D40 Amplifier for Sale in Europe

Euro Electronic Space offers the d&b D40 amplifier for sale in Europe for professional audio customers looking for modern d&b amplification.

Delivery can be arranged to supported European markets, including Germany, the Netherlands, France and Italy, as well as other supported destinations.

Customers purchasing multiple amplifiers can enquire about consolidated freight. Additionally, D40 units can be combined with compatible loudspeakers and professional audio equipment when available.

Frequently Asked Questions About the D40

How many amplifier channels does the D40 provide?

The D40 provides four independent Class-D amplifier channels.

Does the D40 have built-in DSP?

Yes. It includes 96 kHz DSP with d&b loudspeaker processing and extensive system-tuning functionality.

How much EQ does it provide?

The D40 provides 16-band equalization per channel, with several supported filter types.

Does the D40 support LoadMatch?

Yes. LoadMatch provides cable compensation for compatible d&b loudspeaker systems.

How much delay is available?

Up to 10 seconds per channel.

Can I connect digital audio?

Yes. AES3 digital connectivity is available alongside analog XLR inputs.

Can the D40 be controlled remotely?

Yes. Network connectivity allows the amplifier to operate within compatible d&b remote-control environments such as R1.

How large is the D40?

It occupies 2U of rack space, is approximately 465 mm deep and weighs around 13.8 kg.

Can D40 power any d&b loudspeaker?

Not necessarily. The exact loudspeaker must have a supported D40 configuration. Always verify compatibility before building the system.
