Martin Audio W8C for Sale | Wavefront 3-Way Horn-Loaded Loudspeaker

The Martin Audio W8C for sale is a compact three-way horn-loaded professional loudspeaker from Martin Audio’s Wavefront Touring Series, developed for concert halls, theatres, open-air events and fixed installations. Rather than using a conventional two-way design, the W8C combines a 12-inch low-mid horn, 6.5-inch high-mid horn and 1-inch exit HF compression driver, delivering controlled 55° × 30° dispersion and up to 136 dB peak SPL.

The W8C is especially interesting for professional buyers who want the characteristic efficiency and projection of a horn-loaded system without moving to a much larger cabinet. It can operate with the high-frequency section in either active or passive configuration, which also provides flexibility when building or expanding compatible Wavefront systems.

Martin Audio W8C Technical Specifications

Martin Audio’s official W8C documentation lists the following specifications.

Three-Way Horn-Loaded Wavefront Design

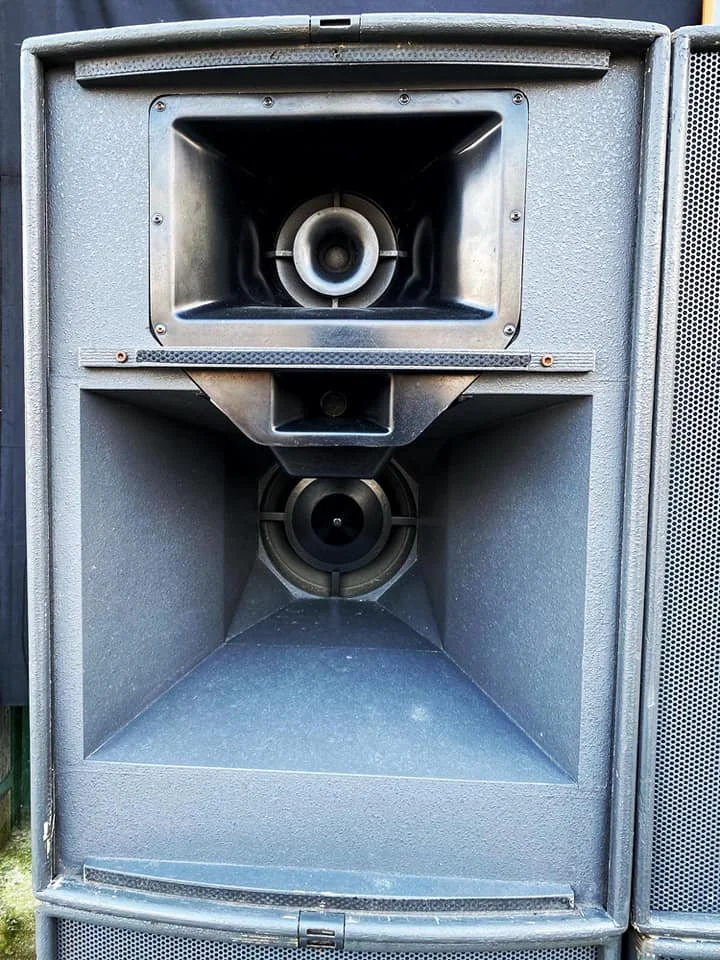

The defining feature of the Martin Audio W8C for sale is its three-way horn-loaded architecture.

Martin Audio divides reproduction between three specialized sections. A 12-inch cone driver mounted to a horn flare handles the low-mid frequencies. Next, a 6.5-inch driver with a constant-directivity horn and toroidal waveguide covers the high-mid region. Finally, a 1-inch exit compression driver handles the high frequencies.

This arrangement was engineered to produce high output while keeping the enclosure comparatively compact for a professional touring system.

12-Inch Low-Mid Horn

The 12-inch driver is responsible for the W8C’s low-mid section.

Martin Audio specifies this section at:

300 W AES
1200 W peak
106 dB sensitivity

The manufacturer describes its operating region in the Wavefront guide as approximately 120–750 Hz.

Instead of relying on a direct-radiating 12-inch driver, horn loading increases acoustic efficiency and contributes to the cabinet’s high-output character.

Dedicated 6.5-Inch High-Mid Section

One feature that makes the W8C particularly distinctive is its dedicated 6.5-inch high-mid horn.

According to Martin Audio, this section was developed to address some of the power and distortion limitations associated with traditional large-format compression-driver approaches.

This gives the W8C a dedicated driver for the important midrange region instead of forcing the HF compression driver to reproduce an unnecessarily broad frequency range.

1-Inch High-Frequency Compression Driver

Above the dedicated high-mid section sits a 1-inch exit HF compression driver.

The official specification rates the HF section at 60 W AES and 240 W peak, with sensitivity around 107 dB.

Together, these three sections form the W8C’s distinctive professional Wavefront architecture.

55° × 30° Controlled Dispersion

The W8C has a nominal dispersion of:

55° horizontal × 30° vertical

This is considerably more focused than a typical wide-dispersion portable PA cabinet.

That controlled pattern is particularly useful when several W8C cabinets are configured together or when a system designer needs to direct acoustic energy toward a defined audience area.

For theatres, concert venues and other professional environments, controlled coverage can also help reduce unnecessary sound directed toward reflective surfaces.

Up to 136 dB Peak SPL

Martin Audio specifies maximum output of:

130 dB continuous

136 dB peak

These figures help explain why the Martin Audio W8C for sale remains relevant to buyers specifically seeking high-efficiency professional horn-loaded systems.

It is a substantial sound-reinforcement cabinet rather than a conventional portable speaker.

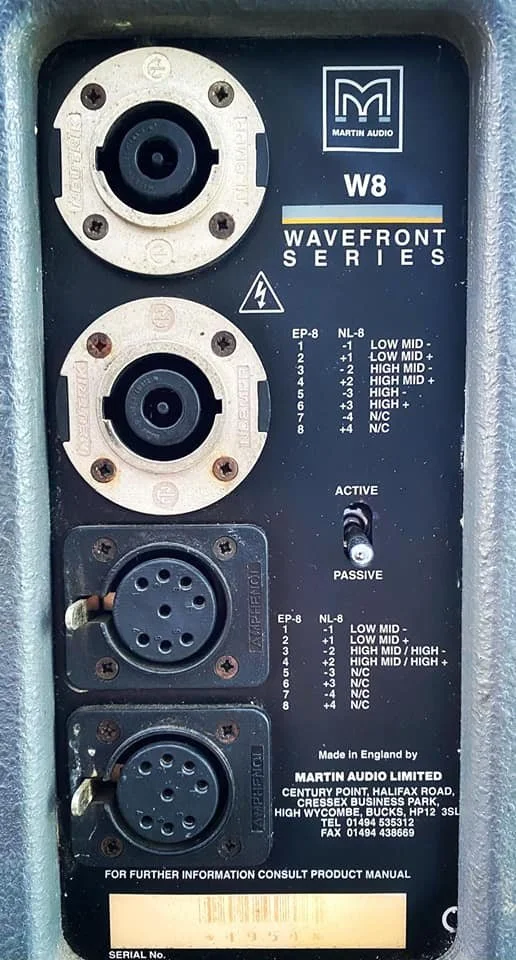

Switchable Active or Passive HF Operation

Another interesting W8C feature is its switchable active/passive high-frequency configuration.

Martin Audio’s Wavefront documentation explains that the high-mid and HF sections can either use separate amplifier channels or operate together from one channel, with the operating mode selected from the rear panel.

That gives system designers additional flexibility when configuring amplifier racks.

Martin Audio W8C for Touring Systems

The W8C was developed as part of Martin Audio’s Wavefront touring platform.

The manufacturer specifically describes it as central to the Wavefront Touring “toolkit,” emphasizing its ability to create comparatively compact high-output configurations.

Relevant professional applications include:

• Concert touring
• Live music venues
• Theatre systems
• Open-air events
• Professional rental inventory
• Multi-purpose auditoriums
• Fixed installations
• Existing Wavefront systems

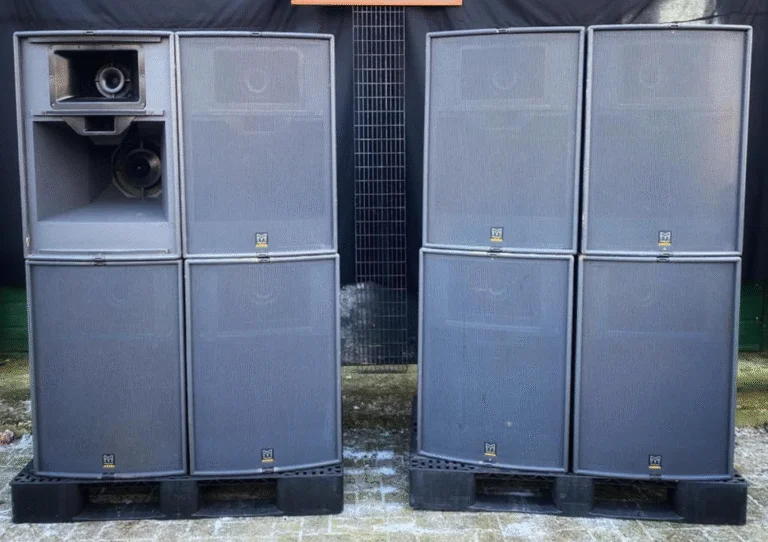

For these applications, multiple W8C cabinets can form larger professional configurations.

Rigging for Professional Deployment

The W8C incorporates four MAN flying points, and Martin Audio lists dedicated flying and hinge accessories for the system.

This reinforces its intended role as professional touring and installation equipment.

Rigging should, of course, only use properly rated hardware and be handled by qualified professionals following the manufacturer’s documentation.

W8C with W8CS and WSX Subwoofers

The wider Wavefront Touring family included complementary low-frequency products.

For example, Martin Audio designed the W8CS specifically for the W8C compact touring system. The W8CS could provide the system’s low-frequency section or operate alongside WSX ground-stacked subwoofers in larger configurations.

This means buyers assembling an original-style Wavefront system may be interested in W8C cabinets specifically because they already own compatible Wavefront bass equipment.

Professional Loudspeaker Processing

Correct processing remains important when using legacy professional equipment.

The W8C documentation specifies crossover requirements and amplifier recommendations rather than presenting the cabinet as a generic plug-and-play passive speaker.

Martin Audio also maintains downloadable parameter information specifically for archived loudspeaker systems.

For an existing Wavefront system, maintaining the correct processing and amplification configuration is particularly important.

A Legacy Martin Audio Wavefront Model

The W8C is no longer part of Martin Audio’s current production portfolio. Instead, the company lists the W8C in its official Archived Products section, where legacy datasheets, drawings and user guides remain available.

That gives this product an important SEO angle.

People searching for a W8C today may not simply be comparing new PA speakers. They may already own a Wavefront system and need:

Additional W8C cabinets
Replacement units
Matched pairs
Backup inventory
Expansion equipment
Legacy Martin Audio stock

Those are highly model-specific buying intentions.

Martin Audio W8C vs H3+

Although both are three-way professional Martin Audio loudspeakers, their architecture and positioning differ.

The W8C uses a 12″ low-mid + 6.5″ high-mid + 1″ HF configuration with relatively narrow 55° × 30° coverage.

The H3+ belongs to the Blackline family and uses a different driver configuration.

Therefore, the W8C product page should focus heavily on Wavefront touring, compact horn-loaded arrays and controlled 55° coverage, rather than reusing the H3/H3+ sales copy.

Construction and Physical Size

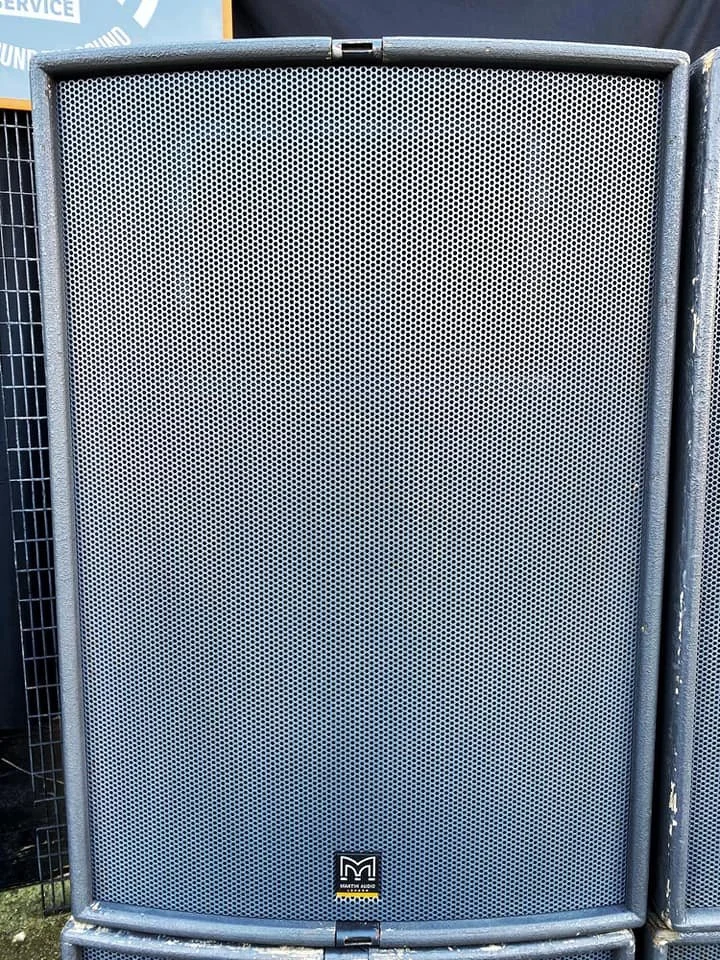

The W8C uses a heavily braced, multi-laminate trapezoidal plywood enclosure with a perforated steel protective grille.

Official dimensions are approximately:

Width: 556 mm
Height: 799 mm
Depth: 780 mm without wheels
Weight: approximately 71 kg.

Consequently, this remains substantial professional equipment despite being described as compact within its category.

Condition and Current Stock

You haven’t provided the condition, quantity or price of your available W8C cabinets.

Therefore, I would avoid automatically describing them as perfectly working, original components, excellent condition or recently serviced.

Until those details are confirmed, use:

Condition: Contact for details
Quantity: Contact for availability
Price: Contact for price

That keeps this listing independent from the condition statements used on your other products.

Buy Martin Audio W8C for Sale in Europe

The Martin Audio W8C for sale is an interesting option for professional audio companies, venues and existing Wavefront users searching for this specific legacy Martin Audio platform.

With its 12-inch horn-loaded low-mid driver, dedicated 6.5-inch high-mid horn, 1-inch compression driver, 55° × 30° dispersion and up to 136 dB peak SPL, the W8C provides a distinctive combination of compact enclosure dimensions and high-output professional performance.

Shipping can be arranged to supported destinations throughout Germany, the Netherlands, France, Italy and other European markets.

Frequently Asked Questions

What is the Martin Audio W8C?

The W8C is a three-way horn-loaded professional Wavefront loudspeaker developed for touring, theatre and fixed-installation applications.

What drivers does the W8C use?

It combines a 12″ low-mid driver, 6.5″ high-mid driver and 1″ exit HF compression driver.

What is the frequency response?

Martin Audio specifies approximately 120 Hz–18 kHz ±3 dB, with -10 dB at 100 Hz.

What is the W8C dispersion?

Nominal coverage is 55° horizontal × 30° vertical.

How loud is the Martin Audio W8C?

The official specification lists 130 dB continuous and 136 dB peak SPL.

How much does a W8C weigh?

Approximately 71 kg per cabinet.

Can the HF section operate actively or passively?

Yes. The W8C supports switchable active/passive HF operation.

Is the Martin Audio W8C discontinued?

Yes. Martin Audio currently includes the W8C in its archived-products collection for models no longer in manufacture.

Can W8C cabinets be used with subwoofers?

Yes. Martin Audio developed Wavefront bass systems such as the W8CS specifically to complement W8C systems.
