Yamaha DM3-D for Sale | 3 Dante Digital Mixing Consoles

We have 3 Yamaha DM3-D for sale, offering professional engineers, rental companies, venues and production teams a compact digital mixing solution with integrated Dante networking. The DM3-D combines Yamaha’s 96 kHz audio processing, 22-channel mixing architecture, 16 × 16 Dante I/O and an intuitive 9-inch multi-touch interface in a highly portable console weighing only 6.5 kg.

The DM3-D is the Dante-equipped version of Yamaha’s DM3 Series, making these three consoles particularly suitable for networked live sound, recording, streaming, corporate AV and fixed-installation applications.

Yamaha DM3-D Specifications

These core specifications are confirmed by Yamaha’s official documentation.

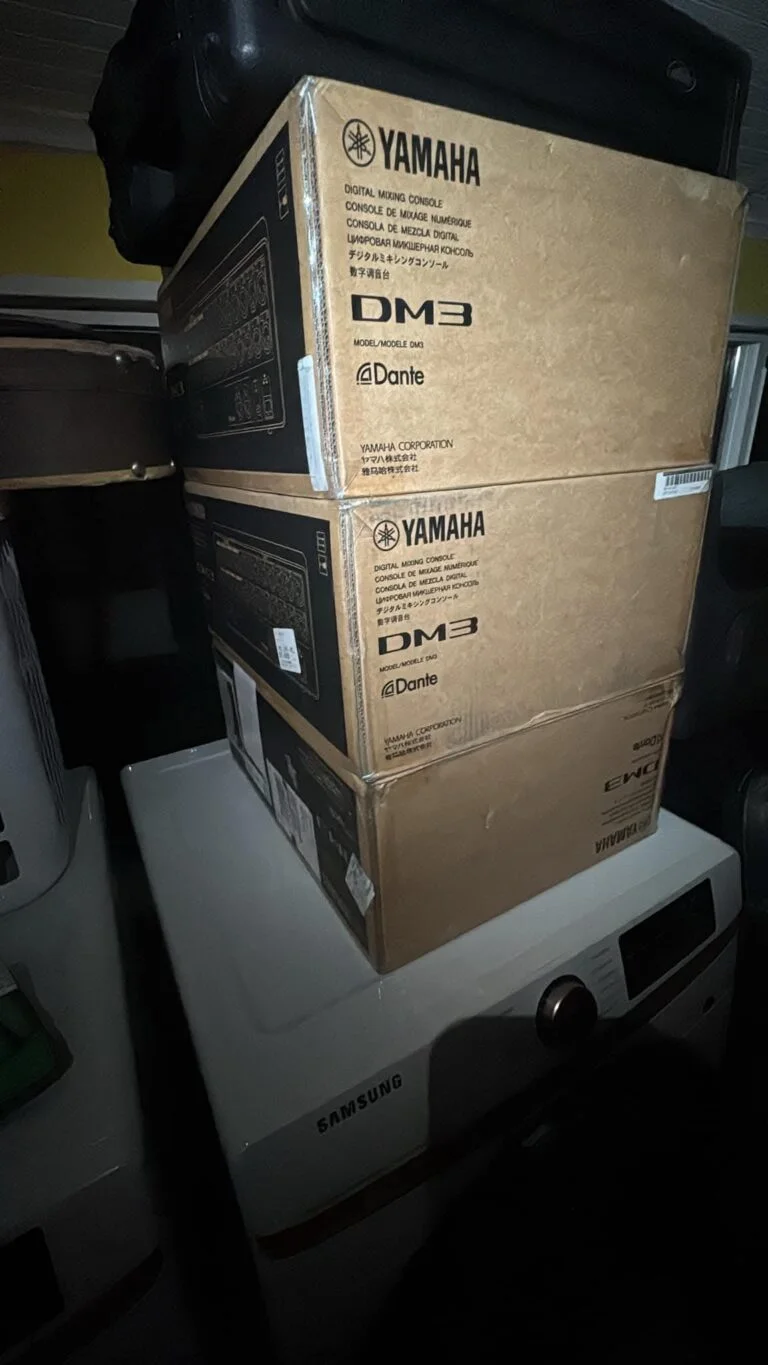

3 Yamaha DM3-D Consoles Available

The current offer consists of:

3 × Yamaha DM3-D Dante Digital Mixing Consoles

Having three matching consoles can be particularly attractive for professional production companies and rental inventories that need standardized mixing equipment across several systems.

They can also be deployed individually for separate productions or incorporated into a larger Dante-based audio environment.

Integrated Dante Networking

The major difference between the DM3-D and the DM3 Standard is Dante.

The DM3-D provides:

16 × Dante Inputs

16 × Dante Outputs

along with primary and secondary etherCON connections. Yamaha specifically identifies the DM3-D as its Dante-equipped DM3 model.

This allows the mixer to integrate with compatible networked stage boxes, processors and other Dante-enabled professional audio equipment.

Compact 22-Channel Digital Mixer

Despite its small physical footprint, the DM3-D provides a capable mixing architecture consisting of:

16 mono input channels

1 stereo input channel

2 FX return channels

along with six Mix buses, two FX buses, two Matrix buses and a stereo bus.

This gives the console enough flexibility for a wide variety of compact professional systems.

96 kHz Audio Processing

The Yamaha DM3-D supports operation at:

48 kHz / 96 kHz

allowing engineers to build professional digital workflows while maintaining the compact dimensions that make the DM3 Series particularly portable.

Yamaha specifies a typical DA converter dynamic range of 110 dB and input-to-output dynamic range of 106 dB.

9-Inch Multi-Touch Display

At the center of the DM3-D interface is a:

9-Inch Multi-Touch Screen

The console combines this display with eight channel faders, one main fader and Yamaha’s Touch and Turn rotary encoder.

The touchscreen-centered workflow allows many mixing functions to be accessed without requiring a physically large control surface.

16 Local Mic/Line Inputs

The console provides:

16 Local Mic/Line Inputs

consisting of:

12 × XLR

plus

4 × XLR/TRS combo connections.

Eight analog XLR outputs are also provided.

This means the DM3-D can operate as a self-contained compact mixer while still offering Dante expansion when a networked system is required.

18 × 18 USB Audio Interface

USB connectivity provides:

18-Track Recording

and

18-Track Playback

with a connected PC or Mac.

This expands the DM3-D beyond conventional live mixing and makes it useful for recording, virtual soundcheck and computer-based production workflows.

Built-In Effects & GEQ

Yamaha equips the DM3 Series with two multi-effects processors offering 18 effect types. Graphic EQ is also available on Mix 1–6 and the stereo channel.

This reduces the amount of external processing equipment required for many compact productions.

Extremely Compact Professional Console

One of the DM3-D’s strongest advantages is portability.

The console measures only:

320 mm wide

140 mm high

455 mm deep

and weighs approximately:

6.5 kg

according to Yamaha.

That makes it practical for mobile engineers, touring productions, rental inventories and compact control positions.

Professional Applications

The three Yamaha DM3-D consoles are suitable for applications including live concerts, touring systems, corporate AV, theatres, houses of worship, broadcast or streaming setups, recording, conference systems and fixed installations.

Yamaha itself positions the DM3 Series across mixing, recording, live streaming and installed applications.

Compatible with Yamaha Tio Dante I/O

For applications requiring remote stage I/O, the Dante-equipped DM3 can be integrated with compatible Yamaha Dante hardware such as the Tio1608-D2.

Yamaha describes the Tio1608-D2 as providing 16 microphone/line inputs and 8 line outputs.

This can make the DM3-D the center of a compact digital stage-box system.

Quantity & Condition

Quantity Available: 3 Units

The confirmed information supplied for this listing is that three Yamaha DM3-D Dante consoles are for sale.

No specific condition, age, accessories or selling price was provided. Therefore, those details should not be invented.

Until confirmed, use:

Condition: Contact for details
Price: Contact for current price
Quantity: 3 units

Frequently Asked Questions

How many Yamaha DM3-D consoles are available?

There are 3 Yamaha DM3-D consoles for sale.

Does the Yamaha DM3-D have Dante?

Yes. The DM3-D provides 16 × 16 Dante I/O with primary and secondary etherCON connections.

How many local inputs does it have?

It provides 16 Mic/Line inputs, consisting of 12 XLR and four XLR/TRS combo connectors.

Does it support 96 kHz?

Yes. The DM3-D supports both 48 kHz and 96 kHz operation.

How many faders are on the Yamaha DM3-D?

The console uses an 8 + 1 fader configuration, with eight channel faders and one main fader.

Can it record multitrack audio over USB?

Yes. Yamaha specifies 18-track recording and 18-track playback through USB with a PC or Mac.

How much does the Yamaha DM3-D weigh?

Approximately 6.5 kg, making it highly portable for a professional Dante-equipped console.
