d&b Audiotechnik D12 Amplifier for Sale | Professional 2-Channel DSP Amplifier

The d&b Audiotechnik D12 amplifier for sale is a professional two-channel power amplifier and loudspeaker controller developed specifically for compatible d&b loudspeaker systems. Rather than functioning as amplification alone, the D12 combines high-output power, loudspeaker-specific DSP, system monitoring, protection, delay, EQ and remote-control capabilities in a rugged 3U touring rack format. For rental companies, venues and existing d&b system owners, it remains a practical amplifier platform for many established d&b loudspeaker systems.

More Than a Conventional Power Amplifier

The D12 was designed around d&b’s integrated system approach.

Each amplifier channel combines power amplification with digital signal processing. Therefore, users can select appropriate loudspeaker configurations while the amplifier manages relevant filtering, equalization and protection functions.

This architecture can simplify professional systems because much of the loudspeaker management takes place directly inside the amplifier.

D12 Technical Overview

*Output figures depend on the applicable signal conditions and configuration. Buyers should refer to the original d&b documentation for the exact rating method.

Dual-Channel Class-D Amplification

At its core, the D12 provides two independent amplifier channels.

The supplied specifications state output of up to 2 × 1200 W into 4 ohms and 2 × 800 W into 8 ohms under the applicable operating conditions.

Class-D amplification also helped d&b provide substantial output from a manageable professional rack enclosure.

For touring applications, this combination of power and integrated processing made the D12 considerably more than a generic two-channel amplifier.

Built-In d&b Loudspeaker Configurations

One of the most important reasons to choose a D12 is its integration with compatible d&b loudspeakers.

The amplifier contains dedicated loudspeaker setups for supported d&b systems. Once the appropriate configuration is selected, the DSP applies the processing required for that loudspeaker.

Consequently, the D12 should be viewed as part of the wider d&b system architecture rather than simply as a standalone amplifier selected according to wattage.

Compatibility should always be checked for the exact loudspeaker model before use.

Integrated 4-Band Equalization

Each D12 channel provides a 4-band equalizer.

The EQ functionality supports parametric and notch-filter applications, giving professional system technicians additional control over system response.

This can be useful when adapting a system to a particular venue or dealing with specific acoustic requirements.

However, system EQ should complement correct loudspeaker deployment and measurement rather than compensate for poor physical system design.

Up to 340 ms of Delay

The D12 also incorporates adjustable delay of up to approximately 340 milliseconds.

This is especially useful in professional systems containing distributed or delayed loudspeakers.

For example, engineers may need to time-align secondary loudspeakers with a main PA system. Having delay available directly within the amplifier reduces the need for a separate processor for certain configurations.

Fine adjustment also enables precise alignment during professional system commissioning.

Front-Panel LCD Control

Unlike amplifiers that rely entirely on external software, the D12 provides direct front-panel control.

An LCD display and rotary encoder allow technicians to navigate settings and make adjustments directly from the amplifier rack.

The front panel also provides status information relating to amplifier operation and protection.

This can be particularly convenient during setup, troubleshooting or smaller productions where remote-control infrastructure is unnecessary.

System Check

The D12 incorporates d&b’s System Check functionality.

This feature can help professional operators verify the condition of connected loudspeaker systems by comparing electrical measurements against expected values.

For touring companies, system verification can be particularly useful after transportation and before a production begins.

Instead of discovering a potential loudspeaker problem during a performance, technicians have additional tools for checking the system during setup.

Load Monitoring

Another useful function is Load Monitoring.

This feature monitors the electrical characteristics of connected loudspeakers and can help identify certain changes or potential problems within an appropriately configured system.

Together, System Check and Load Monitoring make the D12 more than an amplifier with basic DSP. They form part of d&b’s broader approach to professional loudspeaker management and diagnostics.

SenseDrive Capability

Compatible D12 configurations can also support d&b SenseDrive.

SenseDrive uses feedback from the loudspeaker connection to improve control of low-frequency driver behavior in compatible systems.

This capability requires the appropriate connector and cabling arrangement, such as supported EP5 configurations with five-wire cabling.

Therefore, buyers specifically requiring SenseDrive should confirm the output connector configuration on the exact D12 being purchased.

Analog and Digital Audio Connectivity

The D12 provides professional audio input options for integration into different system environments.

Depending on the particular version and configuration, connectivity can include:

• Analog XLR inputs
• AES/EBU digital audio
• NL4 loudspeaker outputs
• EP5 configurations
• NL8 configurations
• CAN-Bus remote control

Because D12 units can differ in connector configuration, buyers should verify the rear panel of the actual amplifier before ordering.

CAN-Bus Remote Management

Dual RJ45 connections provide access to the amplifier’s CAN-Bus remote-control interface.

This allows compatible d&b remote-control environments to communicate with multiple amplifiers from a centralized location.

For a professional rental rack containing several D12 units, centralized monitoring can significantly improve workflow compared with adjusting every amplifier manually.

It can also help technicians supervise larger systems during setup and operation.

Built-In Signal Generator

The D12 includes diagnostic tools such as an internal signal generator.

Available signals include sine wave and pink noise, which can assist professional technicians during system setup, testing and troubleshooting.

Again, this demonstrates how the D12 combines several functions that might otherwise require separate pieces of equipment.

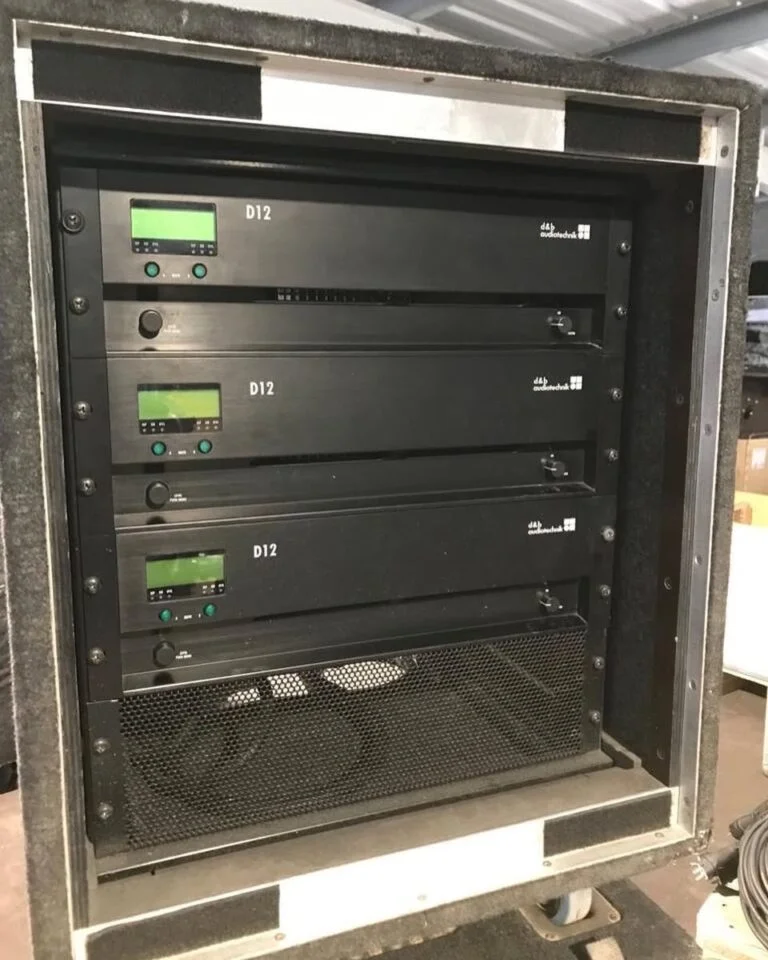

Professional 3U Rack Format

The D12 occupies 3U of rack space and weighs approximately 13 kg.

Its professional rackmount construction makes it suitable for permanent installations as well as mobile amplifier racks.

For touring businesses, multiple D12 units can therefore be installed together with appropriate power distribution and signal infrastructure.

A Practical Choice for Existing d&b Systems

The strongest reason to purchase a D12 today may be compatibility with established d&b equipment.

Professional rental companies and venues can have significant inventories built around previous-generation d&b loudspeakers. Replacing an entire system simply because an amplifier platform is no longer the newest generation may not always make commercial sense.

Additional D12 amplifiers can therefore be useful for:

• Expanding compatible amplifier racks
• Maintaining backup inventory
• Replacing existing D12 units
• Supporting additional compatible loudspeakers
• Building complete systems from existing d&b inventory

The exact speaker setup should always be checked against d&b documentation.

Where the D12 Works Best

The amplifier can suit several professional environments when paired with compatible equipment, including concert touring, PA rental, theatres, festivals, performance venues, fixed professional installations and event-production systems.

It is particularly relevant where d&b-specific processing and system monitoring are required rather than generic amplification alone.

Previous-Generation d&b Technology

The D12 is an established previous-generation d&b amplifier and should be marketed accordingly.

Current d&b amplification has moved to newer platforms, including the D40, D80 and other current models. However, the D12 remains relevant to compatible earlier d&b systems.

For used units, buyers should consider physical condition, service history, connector configuration, firmware and compatibility with their intended loudspeakers.

Buying D12 Amplifiers in Europe

Euro Electronic Space can supply D12 amplifiers to supported destinations across Europe, including Germany, France, the Netherlands and Italy.

For customers purchasing multiple amplifiers or combining D12 units with loudspeakers, subwoofers and racks, consolidated freight can also be arranged according to the final order.

Current stock and connector configuration should be confirmed before purchase.

Common Questions About the D12

How many amplifier channels does the D12 have?

The D12 is a two-channel professional amplifier.

Does the D12 include DSP?

Yes. Loudspeaker processing, EQ, delay, protection and monitoring functions are integrated into the amplifier.

How much power does a D12 provide?

The supplied specifications state up to 2 × 1200 W into 4 Ω and 2 × 800 W into 8 Ω under the applicable measurement conditions.

Does it have built-in EQ?

Yes. Each channel provides 4-band equalization.

How much delay is available?

The D12 provides up to approximately 340 ms of adjustable delay.

Can a D12 be remotely controlled?

Yes. Compatible remote-control systems can communicate with the amplifier through its CAN-Bus interface.

Does the D12 support SenseDrive?

Compatible configurations can support SenseDrive when used with the required connector, wiring and loudspeaker setup.

Is the D12 a current d&b amplifier?

No. It is an earlier-generation d&b amplifier platform. Buyers should therefore verify compatibility with the specific loudspeakers they intend to operate.
